Creality CR-Scan Otter 3D Scanner

Creality CR-Scan Otter 3D Scanner: Precision and Versatility in the Palm of Your Hand

Introducing the Creality CR-Scan Otter, now available at 3D Print Lab. This advanced 3D scanner captures objects with unmatched precision, whether they are small coins or large vehicles.

Its compact, elegant design ensures it fits comfortably in your hand, enabling you to create detailed digital images of the real world effortlessly.

Key Features:

• Versatile Object Capture: Capable of scanning a wide range of object sizes, from 10 x 10 x 10 mm³ to 2000 x 2000 x 2000 mm³, the CR-Scan Otter is perfect for both small and large-scale projects.

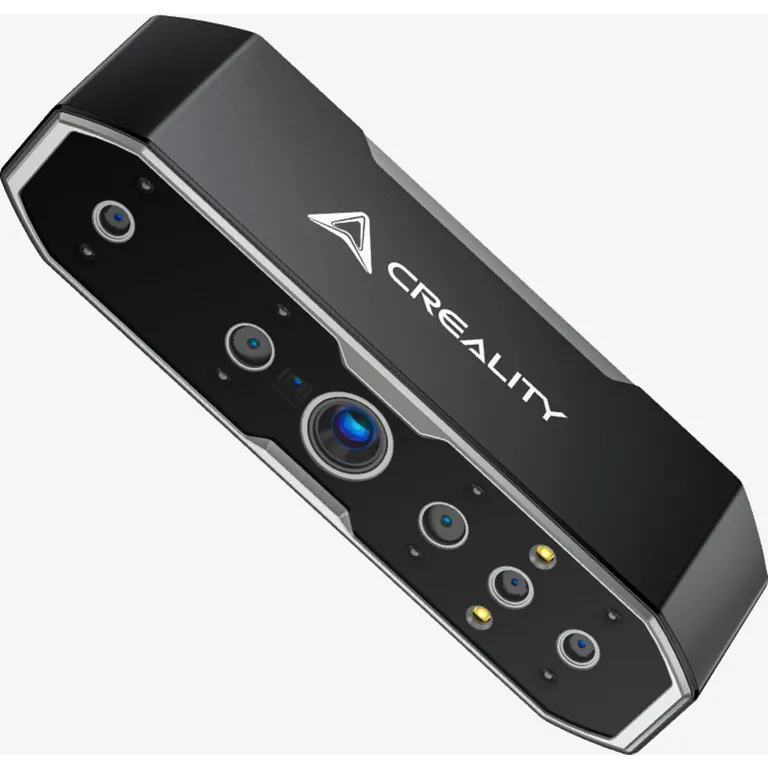

• Four Lenses for Enhanced Detail: Equipped with two pairs of double lenses, the scanner can precisely capture both small, intricate details and large surface areas. The long-focal lens pair excels at scanning small objects, while the short-focal lens pair is ideal for larger areas.
• Ultra-High Precision: Utilizing state-of-the-art structured-light stereo matching algorithm and modern optical design, the CR-Scan Otter achieves an accuracy of up to 0.02 mm, ensuring every detail is captured with sharpness and clarity.
• Face and Body Algorithm: Featuring a unique facial imaging algorithm, the scanner captures human body details quickly and safely, scanning a full body in just 2 minutes with near-infrared light that is safe for eyes.
• Outdoor Scanning Capability: Advanced DOE 3D structure light technology allows the CR-Scan Otter to adapt to varying environmental conditions, performing excellently even in strong sunlight.
• Full-Color Scanning: The built-in RGB camera with 1 million pixels and exclusive color mapping algorithm provides clear capture of realistic textures and colors, aided by two additional LED lights for low-light environments.
• Supports Marker Scanning: For objects with fewer scan features, 8 infrared lights enhance marker point tracking, achieving higher accuracy in marker mode.

Other Features:

• Portable and Lightweight: Weighing only 390g, the CR-Scan Otter is easy to carry and operate.
• Robust Design: Full metal housing ensures durability and excellent heat dissipation, while a fanless design maintains quiet operation.
• Cross-Platform Compatibility: Compatible with Windows and macOS, offering seamless operation.
• User-Friendly Software: Intuitive CrealityScan software with features like step-by-step instructions, one-click processing, multiple scan alignment, point-cloud editing, and various scanning modes.

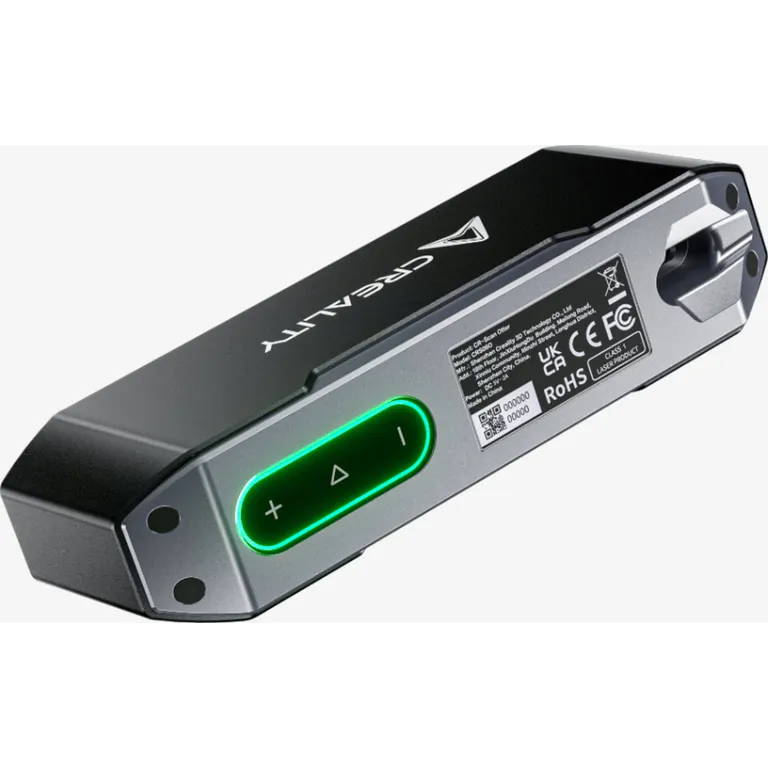

• Real-Time Feedback: Ring indicator light provides real-time scanning status, while touch buttons and acoustic feedback enhance user comfort.
• Smooth Scanning Processes: Equipped with anti-shake protection, One-Shot 3D imaging technology, and fast retracing speed for natural stability.
• Scan Black and Metal Objects: Capable of scanning black and metal surfaces without the need for scanning spray.

Technical Specifications:

• Accuracy: Up to 0.02mm
• 3D Resolution: 0.05-2mm
• Scan Speed: Up to 20 fps
• Min. Scan Volume: 10x10x10mm
• Scanning Technology: Structured infrared light
• Working Distance: 110-1000mm
• Color Mapping: Yes
• Alignment Modes: Geometry, Marker, Texture
• IMU: Yes
• Additional Colored Light: 2 white LEDs
• Improved Marker Detection: 8 infrared LEDs
• Laser Safety: Class 1
• Operating System: Windows, macOS
• Service: Touch buttons
• Input Voltage: 5V, 3A
• Interface: USB Type-C
• Device Size: 165 x 37 x 59 mm
• Device Weight: 390g

The Creality CR-Scan Otter from 3D Print Lab offers unparalleled precision and versatility for a wide range of 3D scanning applications. Whether you are capturing intricate details or large surfaces, this scanner delivers exceptional results with ease.

Elevate your 3D scanning projects with the Creality CR-Scan Otter from 3D Print Lab. Achieve stunning detail and versatility in every scan. Order now and start creating!
